GGP800/1200/130H-E cement grout station for sale

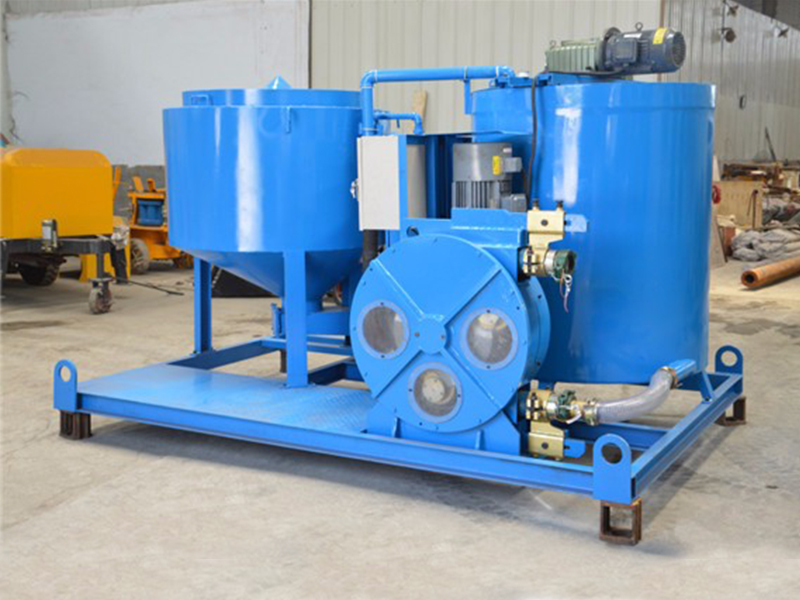

GGP800/1200/130H-E cement grout station is a combination of mixer, agitator and hose pump in one plant. It mainly used for highways, railways, water and electricity, construction, mining etc. ground/underground construction.
GGP800/1200/130H-E cement grout station is mainly used for highways, railways, water and electricity, construction, mining etc. ground/underground construction. Structure and working principle component of this machine is that high speed vortex mixer ensures mix quickly and evenly. Water, cement and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Lastly, grout hose pump injects from the mixing drum (storage tank). The advantage of this machine is that this ensures a continuous mixing and grouting operations.
Mobile Phone:
86-13939067523
E-mail:
dany@gaodetec.com
1.Compact size, It is combination of mixer, agitator and squeeze hose pump and power in one base frame. Flow is adjustable.
2.Squeeze hose pump, hose is the only spare part. It is easy to operate and maintenance. Butterfly connection mixer and agitator, flexible switching.
3.Imported electrical components, it is safe and reliable. High-power and high-speed eddy current pulping, it is fast and evenly. With CE ISO etc. certification.
2.Squeeze hose pump, hose is the only spare part. It is easy to operate and maintenance. Butterfly connection mixer and agitator, flexible switching.
3.Imported electrical components, it is safe and reliable. High-power and high-speed eddy current pulping, it is fast and evenly. With CE ISO etc. certification.
|
Grout Plant type |
GGP800/1200/130H-E |
| Dimensions | 2900*1920*1860mm |
| Weight | 1770kg |
|
Mixer |
|
| Capacity | 800L |
| Power | 15kw |
| Rated Rev. | 1500rpm |
| Suitable water/cement ratio | ≥0.5 |
| Mixer type | high-speed eddy current pulping |
|
Agitator |
|
| Capacity | 1200L |
| Rated Rev. | 36rpm |
| Power | 2.2kw |
|
Squeeze hose pump |
|
| Model | GH65-680B |
| Output | 30-130L/min |
| Power | 7.5kw |
| Working pressure | 1.5MPa |
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
