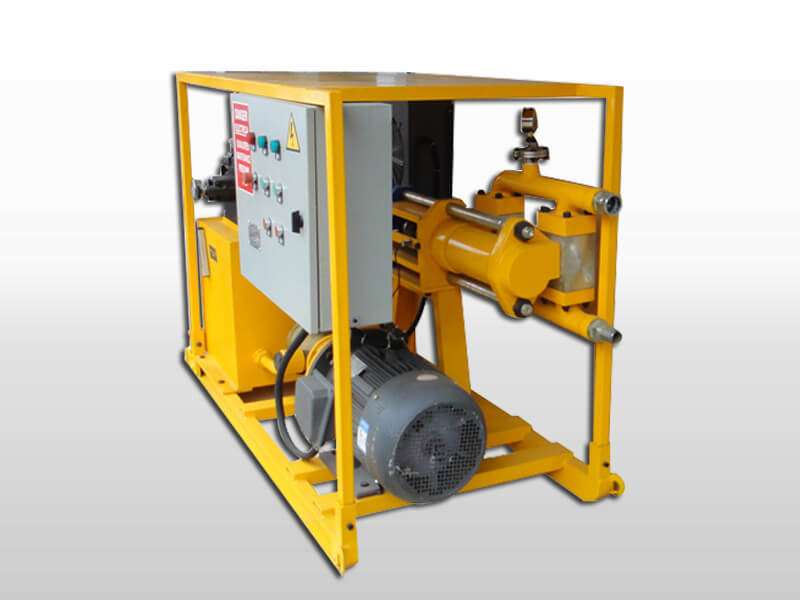

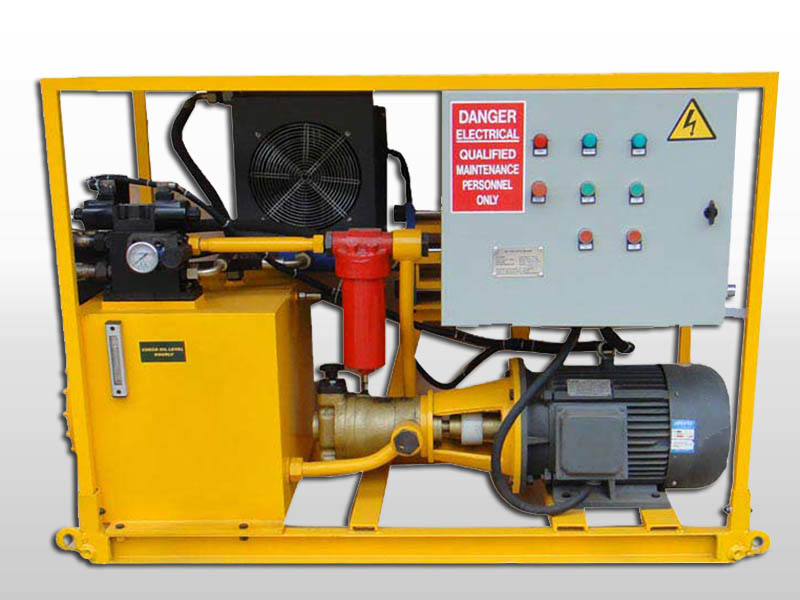

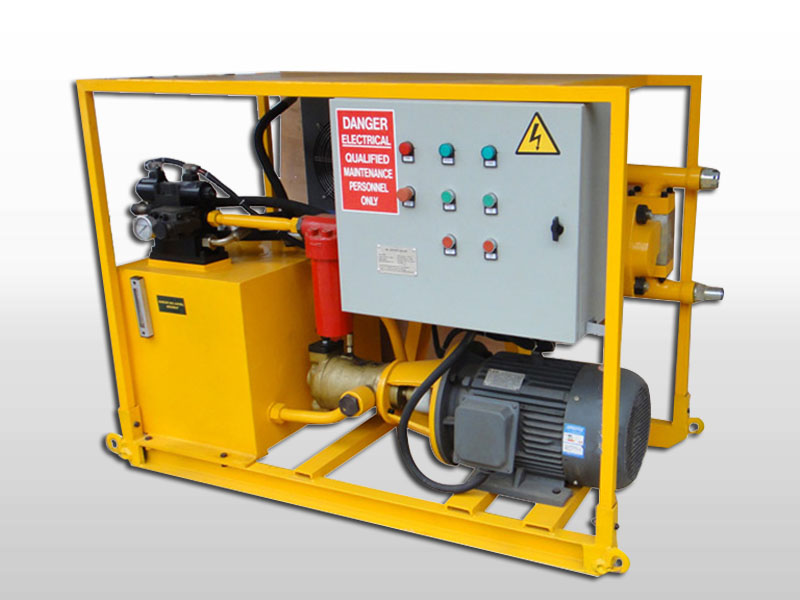

GGH70/100PI-E & GGH100/100PI-E high pressure grout pump for sale
Gaodetec Hydraulic drive injection pump is a universal high-pressure grouting pump. It is mainly used for sealing, strength and stability of rock and soil.Gaodetec Hydraulic drive grouting pump can be operated more flexibly than the conventional grouting pump.
GGH70/100PI-E & GGH100/100PI-E high pressure grout pump can be used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.
Mobile Phone:
86-13939067523
E-mail:
dany@gaodetec.com
1. Single piston with double-acting.
2. Hydraulic drive.
3. Compact structure.
4. Ball valve.
5. Operation and maintenance are simple.
2. Hydraulic drive.
3. Compact structure.
4. Ball valve.
5. Operation and maintenance are simple.
|
Item |
GGH70/100PI-E |
GGH100/100PI-E |
| Rated Output | 0-70 L/Min | 0-100 L/Min |
| Rated Pressure | 10MPa(1450PSI) | 10MPa(1450PSI) |
| Cylinder Dia. | 110mm | 110mm |
| Stroke/Minute | 31 | 45 |
| Inlet Dia. | 38mm | 38mm |
| Outlet Dia. | 32mm | 32mm |
| Power Unit | 7.5kW | 11kW |
| Transmission | Hydraulic drive | Hydraulic drive |
| Chassis | Skid | Skid |
| Weight | 450Kg | 580Kg |
| Overall Dimension | 1505x770x1110mm | 1505x770x1110mm |
| Note: Single or Double Passageway are optional; Chassis: Skid or Tyre | ||
It is mainly used for ground and underground engineering construction, such as roads, railways, hydropower, construction, and mines.
Building structure
Building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting..
Civil engineering
Dam, tunnel, subway, mine, soil nailing wall, curtain. Anchor, cable trench and anchor grouting.
Engineering
Underwater foundation, offshore platform, coast foundation grouting reinforcement.
Mine application
Roadway reinforcement, backfill, waterproof grouting. Acted as a grouting plant in the Pipe Jacking Machine.
